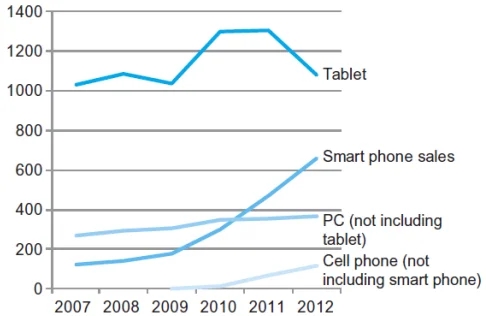

> For the complete documentation index, see [llms.txt](https://dolorhunter.gitbook.io/w3notepad/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://dolorhunter.gitbook.io/w3notepad/computerarchitecture/chep1.md). # 01.Introduction ## The Computer Revolution * Progress in computer technology * Underpinned(巩固) by Moore’s Law * Makes novel applications feasible(可行) * Computers in automobiles * Cell phones * Human genome project * World Wide Web * Search Engines * Computers are pervasive(无处不在) ## Classes of Computers * Personal Mobile Device(PMD) * e.g. smartphones, tablet computers * Emphasis on energy efficiency and real-time * Desktop Computer * Emphasis on price-performance * Servers * Emphasis on availability, scalability, throughput(吞吐率) * Clusters / Warehouse Scale Computers * Used for “Software as a Service(SaaS)” * Emphasis on availability and price-performance * Embedded Computers * Emphasis: price ## The PostPC Era ![The PostPC Era](https://res.cloudinary.com/dfb5w2ccj/image/upload/v1587971566/notepad/2020-04-27_145700_a34ydu.webp) * Personal Mobile Device(PMD) * BaIery operated * Connects to the Internet * Hundreds of dollars * Smart phones, tablets, electronic glasses * Cloud computing * Warehouse Scale Computers(WSC) * Sogware as a Service(SaaS) * Porcon of sogware run on a PMD and a porcon run in the Cloud * Amazon and Google ## What is Computer Architecture ![What is Computer Architecture](https://res.cloudinary.com/dfb5w2ccj/image/upload/v1587971566/notepad/2020-04-27_150521_xqubgz.webp) Application <-> Physics 二者之间的巨大差距很难通过一步来连接 > In its broadest definition, computer architecture is the design of the abstraction/implementation layers that allow us to execute information processing applications efficiently using manufacturing technologies ## Abstractions in Modern Computing Systems ![Abstractions in Modern Computing Systems](https://res.cloudinary.com/dfb5w2ccj/image/upload/v1587971774/notepad/2020-04-27_151507_t78ly3.webp) *注: 红色部分为计算机体系结构所关注的内容.* ## Great Ideas in Computer Architectures 1. Design for **Moore’s Law** 2. Use **abstraction** to simplify design 3. Make the **common case fast** 4. Performance via **parallelism** 5. Performance via **pipelining** 6. Performance via **prediction** 7. **Hierarchy** of memories 8. **Dependability** via redundancy ## Sequential Processor Performance ![Sequential Processor Performance](https://res.cloudinary.com/dfb5w2ccj/image/upload/v1587972223/notepad/2020-04-27_152135_hzndhn.webp) ## 课程内容 Computer Organization * Basic Pipelined Processor Components of a Computer * Same components for all kinds of computer * Desktop, server, embedded * Input/output includes * User-interface devices * Display, keyboard, mouse * Storage devices * Hard disk, CD/DVD, flash * Network adapters * For communicacng with other computers Computer Architecture * Instruction Level Parallelism * Superscalar * Very Long Instruction Word(VLIW) * Long Pipelines(Pipeline Parallelism) * Advanced Memory and Caches * Data Level Parallelism * Vector * GPU * Thread Level Parallelism * Multithreading * Multiprocessor * Multicore * Manycore ## Architecture vs. Microarchitecture “Architecture”/Instruction Set Architecture: * Programmer visible state(Memory & Register) * Operations(Instructions and how they work) * Execution Semantics(语义学)(interrupts) * Input/Output * Data Types/Sizes Instruction Set Architecture ![Instruction Set Architecture](https://res.cloudinary.com/dfb5w2ccj/image/upload/v1587973131/notepad/2020-04-27_153742_jeymfb.webp) *注: 一个软件与硬件之间的契约.* * Properces of a good abstraccon * Lasts through many generations(portability) * Used in many different ways(generality) * Provides convenient functionality to higher levels * Permits an efficient Implementations at lower levels Microarchitecture/Organization: * Trade offs on how to implement ISA for some metric(Speed, Energy, Cost) * Examples: Pipeline depth, number of pipelines, cache size, silicon area, peak power, execution ordering, bus widths, ALU widths ## 软件的发展 Up to 1955, Libraries of numerical routines * Floating point operations * Transcendental functions * Matrix manipulation, equation solvers, ... 1955-60, High level Languages - Fortran 1956 Operating Systems * Assemblers, Loaders, Linkers, Compilers * Accounting programs to keep track of usage and charges IBM的兼容性问题 By early 1960’s, IBM had 4 incompatible lines of computers! 701 ⇒ 7094 650 ⇒ 7074 702 ⇒ 7080 1401 ⇒ 7010 Each system had its own * Instruction set * I/O system and Secondary Storage: magnetic tapes, drums and disks * assemblers, compilers, libraries, ... * market niche business, scientific, real time, ... 这会导致什么问题？ 软件兼容性问题 \=> **IBM 360** 解决该问题 IBM 360: A General-Purpose Register(GPR) Machine * Processor State * 16 General-Purpose 32-bit Registers * may be used as index and base register * Register 0 has some special properties * 4 Floating Point 64-bit Registers * A Program Status Word(PSW) * PC, Condition codes, Control flags * A 32-bit machine with 24-bit addresses * But no instruction contains a 24-bit address! * Data Formats * 8-bit bytes, 16-bit half-words, 32-bit words, 64-bit double-words IBM 360: Initial Implementations | - | Model 30 | Model 70 | | ------------- | --------------- | --------------------- | | Storage | 8K - 64 KB | 256K - 512 KB | | Datapath | 8-bit | 64-bit | | Circuit Delay | 30 nsec/level | 5 nsec/level | | Local Store | Main Store | Transistor Registers | | Control Store | Read only 1µsec | Conventional circuits | IBM 360 instruction set architecture(ISA) completely hid the underlying technological differences between various models. Milestone: The first true ISA designed as portable hardware-software interface! With minor modifications it still survives today! IBM 360: Over 50 years later… The zSeries z14 Microprocessor ![The zSeries z14 Microprocessor](https://res.cloudinary.com/dfb5w2ccj/image/upload/v1587974522/notepad/2020-04-27_160118_dpg9z6.webp) * 5.2 GHz in IBM 14nm SOI CMOS technology * 6.1 billion transistors in 696 mm * 64-bit virtual addressing * original S/360 was 24-bit, and S/370 was 31-bit extension * 10-core design * 6-fetch/cycle * 10-issue/cycle out-of-order superscalar pipeline * Out-of-order memory accesses * Redundant datapaths * every instruction performed in two arallel datapaths and results compared * 128KB L1 I-cache, 128KB L1 D-cache on-chip * 2MB private I-cache L2 per core * 4MB private D-cache L2 per core * On-Chip 128MB eDRAM L3 cache * Up to 672MB eDRAM L4 ## Same Architecture Different Microarchitecture | AMDPhenomX4 | IntelAtom | IBMPOWER7 | | ------------------------------ | ------------------------------ | ------------------------------ | | X86InstructionSet | X86InstructionSet | PowerInstructionSet | | QuadCore | SingleCore | EightCore | | 125W | 2W | 200W | | Decode3Instructions/Cycle/Core | Decode2Instructions/Cycle/Core | Decode6Instructions/Cycle/Core | | 64KBL1ICache,64KBL1DCache | 32KBL1ICache,24KBL1DCache | 32KBL1ICache,32KBL1DCache | | 512KBL2Cache | 512KBL2Cache | 256KBL2Cache | | Out-of-order | In-order | Out-of-order | | 2.6GHz | 1.6GHz | 4.25GHz | ## Architectural Challenges ![Architectural Challenges](https://res.cloudinary.com/dfb5w2ccj/image/upload/v1588140686/notepad/2020-04-29_140940_kzrkuc.webp) * Massive(ca.4X)increaseinconcurrency * Mulccore(4-<100)àManycores(100s–1ks) * Heterogeneity * System-level(accelerators)vschiplevel(embedded) * Computepowerandmemoryspeedchallenges(twowalls) * 500xcomputepowerand30xmemoryof2PFHW * Memoryaccess'melagsfurtherbehind
